Visibility

A field, or a variable accordingly to what called memory model followed by Java Programming might have a set of values that can be returned, which might be counterintuitive to developers. For example, consider this code

A thread which modify the field

public void updateCurrent() {
    currentValue = (int) Math.random();
}

UI thread

currentValue = 5;
for (;;) {
    display.showValue(currentValue);
    Thread.sleep(1000); // wait 1 second
}

In the above code, the write thread might add a lot of values that can be returned to the field currentValue. In this case, memory model will choose to return the initial values because it didn’t detect any method of the UI thread modify currentValue, which results in values modified are not updated on the UI thread, meaning not visible.

To make it visible, there are two methods:

1. Wrap code with synchronized method or block.
2. Declare the field as volatile.

The happens-before relationship

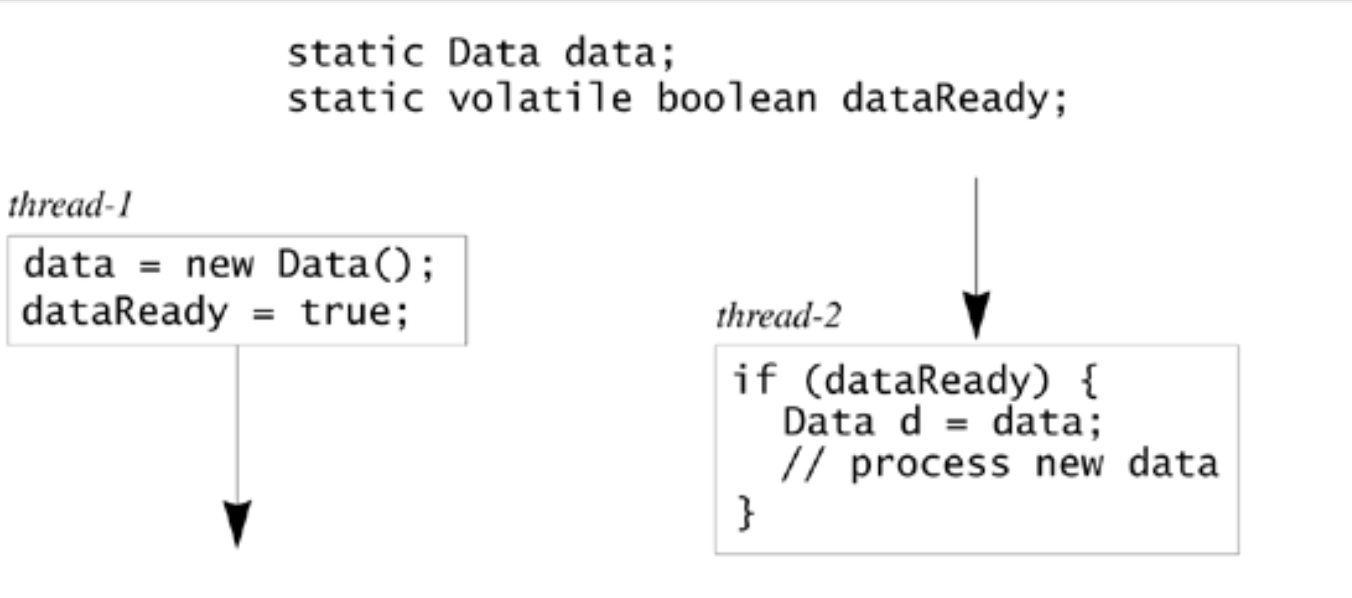

In the following image, although the data references are not synchronized, read from thread-2 still see data updated from thread-1 if dataReady return true. This is because the dataReady is volatile. This phenomenon is called happens-before. The order of execution of threads, might affect the visibility of a variable from another thread.

Final fields and security

There is a myth among developers that a final field doesn’t need to be synchronized, because they assume that the initialization of the field done by one thread synchronizes with the reading process done by another thread. This is not be the case , therefore synchronization tools must be used here to ensure visibility.
